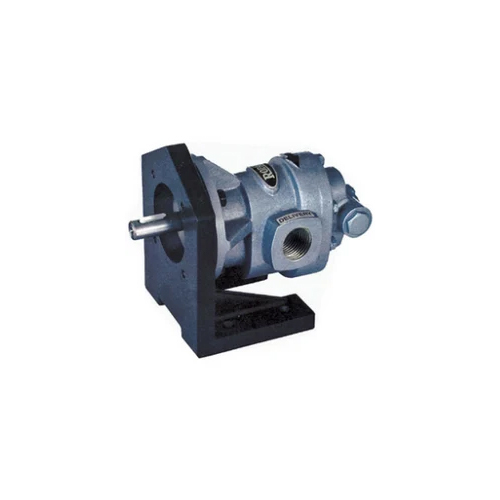

Electric Rotary Gear Pump

Get a Price/Quote

MOQ : 1 Unit

Electric Rotary Gear Pump Specification

Voltage
220V Volt (v)

Mounting Type
Foot Mounted

Theory
Positive Displacement

Speed
1440 RPM RPM

Control System
Manual/Automatic

Max Suction
5 meters

Working Temperature
-10C to 80C Celsius (oC)

Flow Rate
10 LPM

Head Size
550 meters

Caliber
1 Inch

Frequency
50 Hz Hertz (HZ)

Inlet/Outlet
1 x 1 BSP Threaded

Discharge Pressure
Up to 10 Bar

Material
Mild Steel

Structure
Gear Pump

Power
Hydraulic

Standard
IS 1248

Product Type
Gear Pump

Fuel Type
Oil, Diesel

Pressure
High Pressure

Usage
Other

Suction Type
Positive Suction

Seals Type
Mechanical Seal

Priming
Self-Priming

Pump Type
Rotary Gear Pump

Capacity
Up to 1500 LPH Ltr/hr

Gearing
Steel Alloy Gears

Viscosity Range
Up to 1,00,000 cst

Weight
15 kg (approx.)

Temperature Resistance
High

Port Position
Side Suction & Delivery

Direction of Rotation
Clockwise/Counterclockwise

Shaft
Hardened Steel

Body Finish
Painted/Coated

Electric Rotary Gear Pump Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7-10 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Electric Rotary Gear Pump

We offer precisely engineered Rotary Gear Pumps that are manufactured from premium raw materials. The range has application in pumping and transferring of heavy fuels. The range is stringently tested prior to delivery to the customers. These pumps are appreciated for durability and efficient functioning. Our range is appreciated for anti-corrosion and effective performance .This highly durable range is easy to install and easy to use.

Engineered for Reliability

Constructed with a body of painted or coated mild steel, the Rotary Gear Pump offers exceptional durability even in challenging environments. Steel alloy gears and a hardened shaft ensure a long service life with minimal maintenance. The clever gear pump structure and mechanical seal provide consistent performance, reducing leakage risks during continuous operation.

Versatile Applications

Ideal for oil, fuel, and chemical transfer, the Rotary Gear Pump is tailored to handle a wide range of viscosities and temperatures. Thanks to positive suction and self-priming capabilities, it easily manages fluids in industrial, lubrication, and chemical settings. With high pressure, low noise levels, and a compact 15 kg footprint, it fits seamlessly into your workflow.

Optimized Performance

Delivering flow rates up to 10 LPM and accommodating pressures up to 10 Bar, this pump supports fast and reliable transfer processes. The side suction and delivery port configuration, along with inlet/outlet threading, facilitate straightforward installation. Control is flexible, with both manual and automatic modes, and a maximum suction of 5 meters for versatile operational requirements.

FAQs of Rotary Gear Pump:

Q: How does the Rotary Gear Pump handle different fluid viscosities?

A: The pump is designed to efficiently transfer fluids with viscosities up to 100,000 cst, making it suitable for a variety of industrial oils and chemicals. Its steel alloy gears and hardened shaft provide the strength needed to manage thick or thin substances without operational issues.

Q: What is the maximum temperature the Rotary Gear Pump can operate at?

A: This model can reliably function in environments with temperatures ranging from -10C up to 80C, ensuring stable performance in both cold and hot conditions common in industrial and chemical sectors.

Q: When should I use a self-priming gear pump for fluid transfer?

A: Self-priming pumps like this Rotary Gear Pump should be used when your application requires the pump to operate even with an initially dry suction line, ensuring a smooth start and continued performance without manual priming interventions.

Q: Where is it best to install this gear pump?

A: Due to its foot-mounted structure and standard 1-inch BSP threaded ports, this pump is suited for floor-level installations in chemical plants, lubrication systems, or fuel transfer stations requiring a sturdy and accessible configuration.

Q: What are the benefits of mechanical seals in this pump?

A: Mechanical seals help prevent leakage during pump operation, especially at high pressures and temperatures, enhancing the pumps safety and reducing maintenance needs over time.

Q: How does the control system operate, and what options are available?

A: The pump provides both manual and automatic control modes, giving users flexibility to adapt operation according to process requirements or system integration needs.

Q: Can this pump handle fuel, oil, and chemical transfer applications?

A: Yes, the Rotary Gear Pump meets IS 1248 standards and is a versatile choice for oil, diesel, lubrication, and chemical transfer applications, making it suitable for industrial, chemical, and fuel handling industries across India.
