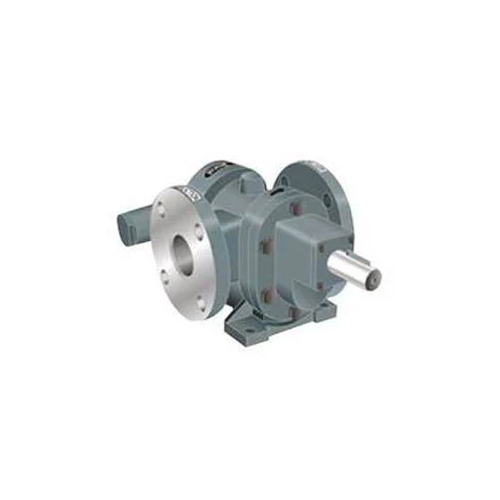

Rotary Gear Pumps (CGXM)
2000.00 - 18000.00 INR/Piece
Product Details:
- Frequency 50 Hz
- Discharge Pressure 3 kg/cm
- Voltage 220 V
- Theory Rotary
- Caliber 25 mm
- Noise Level Low Noise
- Flow Rate 30 LPM
- Click to View more
X
Rotary Gear Pumps (CGXM) Price And Quantity
- 1-100 Piece
- 2000.00 - 18000.00 INR/Piece
Rotary Gear Pumps (CGXM) Product Specifications
- Electric Watt (w)
- 5 m
- Up to 80C
- Rotary Gear Pump
- Positive Suction
- Foot Mounted
- 30 m
- 1440 RPM
- Gear Pump
- 1800 LPH
- Manual
- Oil, Viscous Liquids, Chemical Transfer
- Self Priming
- 1 x 1 (25 mm x 25 mm)
- 3 kg/cm
- 3 kg/cm
- Mechanical Seal
- Rotary
- 220 V
- Electric
- 50 Hz
- Fluid Transfer
- 25 mm
- Low Noise
- GI
- 30 LPM
- IS Standard
Rotary Gear Pumps (CGXM) Trade Information
- 1 Piece Per Day
- 2 Days
- Australia, South America, Eastern Europe, Western Europe, Middle East, Central America, Asia, North America, Africa
Product Description
There are Rotary Gear Pumps (CGXM) supplied by us that is a self priming, Bi directional positive displacement pump with high volumetric efficiency and over all efficiency. The pumps in simple two piece CI construction with self lubricated sintered bronze bush bearing, hardened and ground shafts Gear providing maintenance free pump with long serivce life. Rotary pumps are positive displacement pumps which depend on rotational motion rather than reciprocating motion during the pumps operational cycle. Rotary Gear Pumps (CGXM) is very effective.Heavy-Duty Construction for Demanding Applications
With a rugged GI body and robust EN8 steel shaft, the Rotary Gear Pump (CGXM) is built to withstand high mechanical and operational stress. Its ideal for continuous duty cycles involving oil, viscous liquids, and chemical transfer, ensuring longevity and dependability in harsh environments.
Efficient Performance and Versatile Operation
The CGXM pumps double helical gear impeller and positive suction design offer a flow rate of up to 1800 LPH and a maximum viscosity handling of 100,000 cst. The self-priming feature and threaded end connections simplify installation and startup for a wide range of fluid transfer tasks.
Reliable and Certified Quality
Tested before dispatch and built to IS Standards, the CGXM rotary gear pump provides seamless operation at a maximum pressure of 3 kg/cm. Its mechanical seal prevents leakage, and low-noise, foot-mounted design minimizes vibration, making it a sound choice for industrial environments.
FAQs of Rotary Gear Pumps (CGXM):
Q: How does the Rotary Gear Pump (CGXM) handle high-viscosity liquids?
A: The CGXM Rotary Gear Pump is specifically engineered to handle liquids with viscosities up to 100,000 cst. Its double helical gear impeller creates a positive displacement action, efficiently transferring thick fluids such as oil or viscous chemicals without compromising flow rate or performance.Q: What are the main benefits of using the CGXM pump for fluid transfer applications?
A: Key benefits include robust construction, self-priming up to 5 meters, continuous operation, and the ability to work with a wide range of liquids. Its mechanical seal and heavy-duty design minimize leaks and breakdowns, while the flexible coupling and foot mounting ensure easy installation and maintenance.Q: When should I use the CGXM Rotary Gear Pump over other pump types?
A: The CGXM pump is recommended when dealing with high-viscosity or sticky fluids, or in applications requiring steady, pulse-free flow under moderate pressure and temperature (up to 80C). Typical uses include oil transfer, chemical dosing, and fluid circulation within manufacturing or processing plants.Q: Where can the CGXM pump be installed, and what are its mounting requirements?
A: This pump is designed for indoor or covered industrial environments and is best installed on a stable, foot-mounted base to ensure vibration-free performance. Threaded end connections facilitate integration into existing pipelines for process industries across India.Q: What is the process for starting and operating the CGXM Rotary Gear Pump?
A: Ensure the pump is securely mounted and primed, with proper electrical connection to a 220 V supply. The manual control system allows straightforward operation. Start the pump and monitor for stable flow and pressure; routine checks of seals and lubrication (splash type) help maintain peak efficiency.Q: How does the CGXM ensure reliability and minimize maintenance?
A: With a heavy-duty GI casing, EN8 steel shaft, tested certification before dispatch, and mechanical sealing, the CGXM pump is designed for long-life operation. Low noise levels and robust construction reduce the need for frequent maintenance and ensure safe and efficient working conditions.Tell us about your requirement
