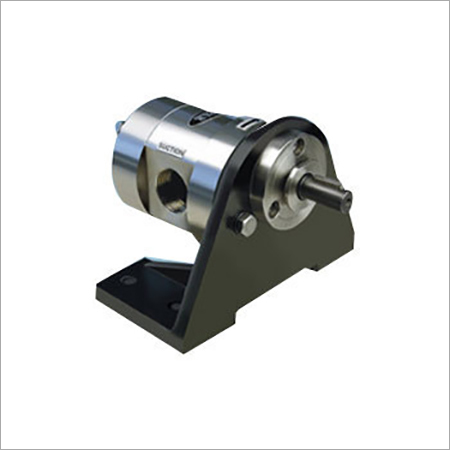

Electric Rotary Gear Pumps (CGSS)

Get a Price/Quote

MOQ : 1-100 Piece

Electric Rotary Gear Pumps (CGSS) Specification

Caliber
Standard

Mounting Type
Foot Mounted

Inlet/Outlet
1/4 to 3 BSP (Threaded)

Frequency
50 Hz Hertz (HZ)

Voltage
220-415 V Volt (v)

Theory
Rotary Gear Displacement

Max Suction
5 Meter

Speed
1440 RPM RPM

Flow Rate
10 LPM to 500 LPM

Working Temperature
Upto 200C Celsius (oC)

Discharge Pressure
Upto 10 bar

Head Size
10 to 100 Meter

Material
GI

Structure
Gear Pump

Power
Electric Watt (w)

Standard
ISO Certified

Pressure
Upto 10 kg/cm (10 bar)

Usage
Other

Application
Other

Suction Type
Positive Suction

Seals Type
Mechanical Seal

Priming
Self-Priming

Pump Type
Rotary Gear Pump (CGSS)

Capacity
0.25 m/hr to 30 m/hr m3/hr

Direction of Rotation
Clockwise (Standard), Anticlockwise on Request

Surface Finish
Powder Coated/Painted

Rotors Type
Double Helical Gear

Body Material
Cast Iron with Stainless Steel Shafts

Lubrication
Rotary Self-Lubricated

Minimum Order Quantity
1 Piece

Color
Silver/Grey

Port Size
1/4AAAAAA to 3AAAAAA

Additional Product Specifications

Suitable For
Industrial, Commercial, Chemical Plants, Oil Transferring

Viscosity Range
Up to 1,00,000 SSU (21,825 cSt)

Electric Rotary Gear Pumps (CGSS) Trade Information

Minimum Order Quantity
1-100 Piece

Supply Ability
1 Piece Per Day

Delivery Time
2 Days

Main Export Market(s)
North America, Western Europe, Eastern Europe, Africa, Central America, Middle East, South America, Australia, Asia

Main Domestic Market
All India

About Electric Rotary Gear Pumps (CGSS)

The Rotary Gear Pumps (CGSS) is self priming bi directional positive displacement pumps in all ss-316 construction, case nitided shafts and gear supported on eight side of 4, nos. Teflon coated self lubricated dry bush bearings. Rotary pumps are positive displacement pumps which depend on rotational motion rather than reciprocating motion during the pumps operational cycle. These pumps have close tolerances between the rotors and the walls of the pump. Rotary Gear Pumps (CGSS) is very useful and made for industrial use.

Power Chart

Model	Port Size BSP	Capacity At 1400 Rpm			Approx Wt.In Kg.
Model	Port Size BSP	M3/hr	LPM	US GPM	Approx Wt.In Kg.
CG-025	1/4" x 1/4"	1.30	5.00	0.30	1.80
CG-025	1/4" x 1/4"	2.20	8.33	0.50	2.00
CG-040	3/8" X 3/8"	4.40	16.66	1.00	3.00
CG-050	1/2" X 1/2"	6.60	25.00	1.50	3.50
CG-075	3/4" x 3/4"	8.80	33.33	2.00	4.50
CG-100	1" x 1"	13.20	50.00	3.00	5.00
CG-125	1 1/4" x 1 1/4"	26.40	100	6.00	6.00
CG-150	1 1/2" x 1 1/2"	33.00	125	7.50	10.500
CG-200	2" X 2"	39.60	150	9.00	20.500
CG-200	2" X 2"	52.80	200	12.00	24.00

Dimension

SIZE	A	B1	C	C1	D1	E	E1	E2	F	G	H	H1	H2	L1	L2	P	Q	PQ.B.S.P
025	128	25	17	3	11.5	8	40	120	72	54	12	63	50.5	101	94	35	3	1/4"x1/4"
040	134	25	17	3	11.5	8	50	125	75	61	14	80	66	121	98.5	35.5	4	3/8"x3/8"
050	146	25	17	3	11.5	8	50	125	77	72.5	14	80	66	121	104	42	4	1/2"x1/2"
075	169	35	25	3	14	10.5	53.5	140	82.5	72.5	17	100	83	143	123	46	5	3/4"x2/4"
100	179	35	25	3	14	10.5	53.5	140	92.5	90	17	100	83	143	128	51	51	1"x1"
125	212	38	30	3	18	12	50	110	98.5	90	21	112	91	161	146	66	6	1/4"x1/4"
150	229	38	30	3	18	12	50	132	101	103	21	112	91	161	156	73	6	1/3"x1/3"
200	259	40	30	5	24	14	75	145	107	103	25	132	107	132	174	85	8	2"x2"
200	283	40	30	5	24	14	75	160	107	103	25	132	107	187	186	97	8	2"x2"

Superior Construction and Reliability

Featuring a robust cast iron body with stainless steel shafts and double helical gears, the CGSS Rotary Gear Pump guarantees durability and precision. The powder-coated or painted surface finish enhances corrosion resistance, allowing this pump to withstand challenging industrial conditions and provide long-term, reliable operation.

Effortless Integration and Customization

The pump supports port sizes ranging from 1/4 to 3 BSP threaded inlets/outlets and delivers flexible direction of rotationclockwise as standard, with anticlockwise available on request. Its mechanical seal, self-lubricating design, and compact foot-mounted structure facilitate straightforward installation and efficient performance in diverse environments.

Performance Across a Broad Range of Applications

Suitable for oil transfer, chemical handling, and viscous liquid transport, the CGSS Rotary Gear Pump achieves high discharge pressures up to 10 bar and heads from 10 to 100 meters. Self-priming capability and low-noise operation further enhance its suitability for continuous industrial and commercial processes.

FAQs of Rotary Gear Pumps (CGSS):

Q: How does the CGSS Rotary Gear Pump ensure reliable operation in industrial environments?

A: This pump features a cast iron body, stainless steel shafts, and double helical gears that deliver durability and resistance to wear. Its powder-coated or painted finish protects against corrosion, while mechanical seals prevent leaks, making it ideal for demanding industrial settings.

Q: What types of liquids can be transferred using the CGSS Rotary Gear Pump?

A: The CGSS is suitable for pumping oils, viscous liquids, and chemicals with viscosities up to 100,000 SSU (21,825 cSt). Its robust design easily handles fluids commonly found in chemical plants, oil transferring stations, and various commercial environments.

Q: Where is the CGSS Rotary Gear Pump typically installed?

A: It is commonly used in industrial facilities, chemical processing plants, and commercial sites that require efficient transfer of oils or viscous fluids. The foot-mounted structure supports versatile installation on stable surfaces.

Q: When is it necessary to request an anticlockwise direction of rotation for the pump?

A: Anticlockwise rotation should be specified when system design or piping configurations require the pump to operate in the opposite direction from the standard clockwise orientation. This can be arranged at the time of order to suit specific operational requirements.

Q: What benefits does the self-lubricating design offer for maintenance?

A: The rotary self-lubricated mechanism significantly reduces the need for external maintenance and manual lubrication, resulting in lower downtime and enhanced operational efficiency.

Q: How does the self-priming capability improve the pumps usage?

A: The self-priming feature enables the pump to efficiently initiate fluid transfer without manual intervention, particularly beneficial for handling viscous liquids and ensuring uninterrupted process flows.

Q: What is the minimum order quantity for the Rotary Gear Pump (CGSS)?

A: The minimum order quantity for the CGSS Rotary Gear Pump is one piece, allowing for immediate procurement whether for replacement, upgrade, or new installations.
