Home » Products » Rotary Gear Pumps

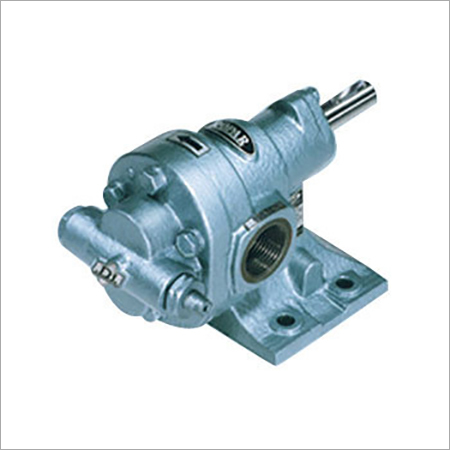

Rotary Gear Pumps

A rotary gear pump employs a positive displacement principle as they feature a casing in which an outer rotor gear as well as an internal idler gear and crescent assembly is housed. Although the rotary gear pump handles solid and abrasive material well, the pump can also handle shear sensitive fluids with a gentle non pulsating flow owing to the cumulative, smooth delivery of the gear teeth meshing. The flow is directly proportional to the speed, independent of the pressure, thus providing a greater control and reliability to the service operator. Due to the shape of the gears and how they are assembled, it is able to handle high temperatures and system pressures. Typically an rotary gear pump excels at handling viscous fluids and are also used commonly on lower viscosity fluids where a constant flow is required at high pressure such as feeding a burner system with diesel fuel.
SS Rotary Gear Pumps
close
SS Rotary Gear Pumps
CGXM

Specification

  • Pump Model : CG-050
  • Inlet Outlet Size :1/2" x 1/2"
  • Capacity At 1440 Rpm Lpm x Usgpm x M3/hr : 10 x 2.65 x0.60
  • Weight Of Bare Shaft Pump In Kg :2.20
Multi Purpose Rotary Gear Pumps
close
Multi Purpose Rotary Gear Pumps
Type-CGX

Specification

  • Pump Model : CG-075
  • Inlet Outlet Size :3/4" x 3/4"
  • Capacity At 1440 Rpm Lpm x Usgpm x M3/hr : 20 x 5.30 x 1.20
  • Weight Of Bare Shaft Pump In Kg :4.30
Positive Displacement Pumps
close
Positive Displacement Pumps
PDP

Specification

  • Pump Model : CG-025
  • Inlet Outlet Size :1/4" x 1/4"
  • Capacity At 1440 Rpm Lpm x Usgpm x M3/hr : 2.5 x 0.65 x 0.15
  • Weight Of Bare Shaft Pump In Kg :1.40
Positive Displacement Rotary Gear Pumps
close
Positive Displacement Rotary Gear Pumps
PDRGP 06

Specification

  • Capacity From 5 to 500 LPM
  • Maximum Working Pressure 12 kg/cm2
  • Normal Working Temperature:  90"c
  • Viscosity up to 10,000 CST
  • Modified Version for High Temp. up to 250'C
